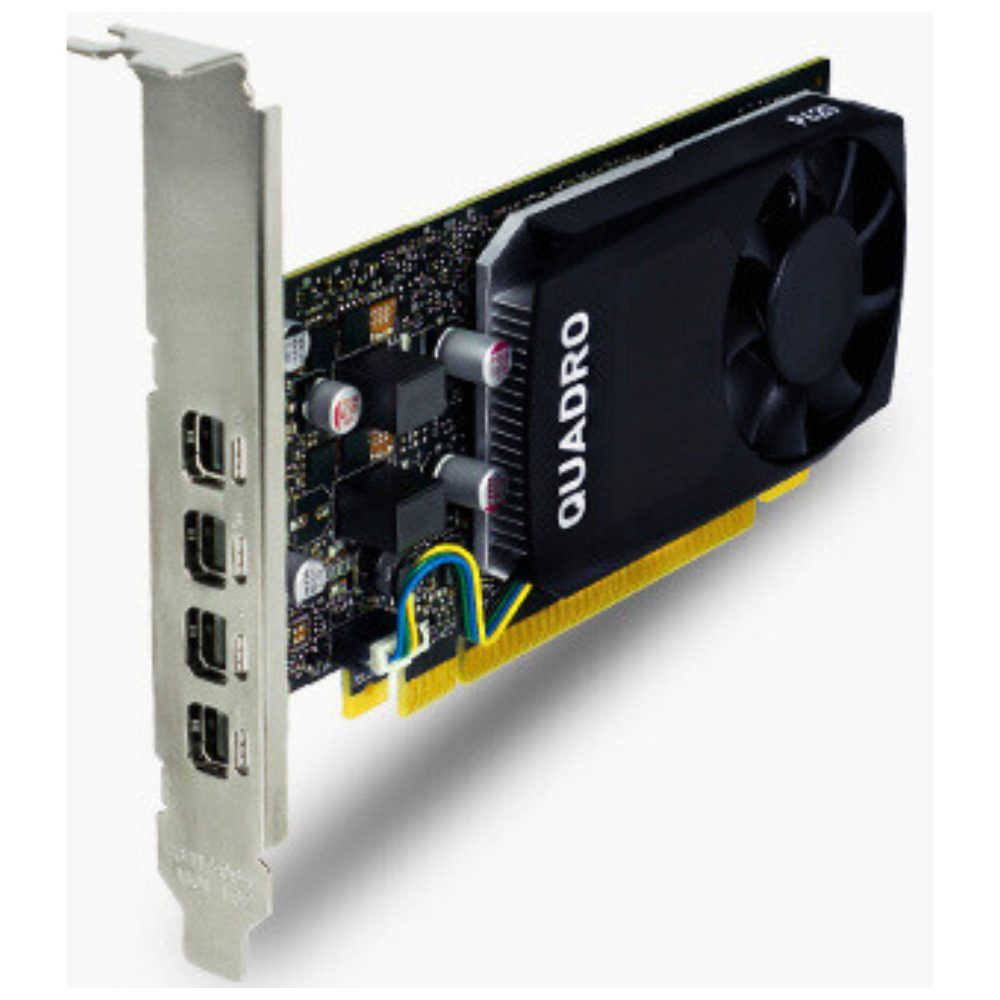

Description Reviews Graphics Processor GPU Name GP107 Architecture Pascal Foundry Samsung Process Size 14 nm Transistors 3,300 million Density 25.0M / mm² Die Size 132 mm² Chip Package FCBGA-908 Graphics Card Release Date Feb 1st, 2018 Generation Quadro Pascal (Px200) Predecessor Quadro Maxwell Successor Quadro Volta Production End-of-life Bus Interface PCIe 3.0 x16 Clock Speeds Base Clock 1266 MHz Boost Clock 1354 MHz Memory Clock 1252 MHz 5 Gbps effective Memory Memory Size 2 GB Memory Type GDDR5 Memory Bus 128 bit Bandwidth 80.13 GB/s Render Config Shading Units 512 TMUs 32 ROPs 16 SM Count 4 L1 Cache 48 KB (per SM) L2 Cache 1024 KB Theoretical Performance Pixel Rate 21.66 GPIXEL/s Texture Rate 43.33 GTEXEL/s FP16 (half) 21.66 GFLOPS (1:64) FP32 (float) 1,386 GFLOPS FP64 (double) 43.33 GFLOPS (1:32) Board Design Slot Width Single-slot Length 145 mm 5.7 inches Width 69 mm 2.7 inches TDP 40 W Suggested PSU 200 W Outputs 4x mini-DisplayPort 1.4a Power Connectors None Board Number PG212 SKU 505 Graphics Features DirectX 12 (12_1) OpenGL 4.6 OpenCL 3.0 VULKAN 1.3 CUDA 6.1 Shader Model 6. The Quadro P620 was a professional graphics card by NVIDIA, launched on February 1st, 2018. Built on the 14 nm process, and based on the GP107 graphics processor, the card supports DirectX 12. The GP107 graphics processor is an average sized chip with a die area of 132 mm² and 3,300 million transistors. Unlike the fully unlocked GeForce GTX 1050 Ti, which uses the same GPU but has all 768 shaders enabled, NVIDIA has disabled some shading units on the Quadro P620 to reach the product’s target shader count. It features 512 shading units, 32 texture mapping units, and 16 ROPs. NVIDIA has paired 2,048 MB GDDR5 memory with the Quadro P620, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 1266 MHz, which can be boosted up to 1354 MHz, memory is running at 1252 MHz (5 Gbps effective). Being a single-slot card, the NVIDIA Quadro P620 does not require any additional power connector, its power draw is rated at 40 W maximum. Display outputs include: 4x mini-DisplayPort 1.4a. Quadro P620 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 145 mm in length, 69 mm in width, and features a single-slot cooling solution. Category: 2GB DDR5 128BIT
