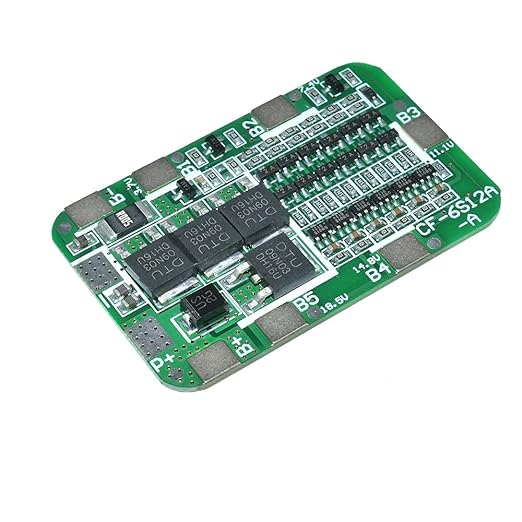

6S 18650 Lithium Battery BMS Protection Board COM42, R28

DescriptionAs the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuseFeatures:Charging Voltage: 25.2VSuitable for 6S 21.6V 22.2V 25.2V Li-ion BatteryOvercharge Detection Voltage: 4.28±0.025vOverdischarge Detection Voltage: 2.55±0.08vOverdischarge detection delay: 0.1SCharging Current (max): 15AInstant Discharge Current: 25ASize: approx.50*30*2mmLampshift maximum discharge current: 12AInstantaneous discharge current: 25AOvercharge protection delay: 0.1SOvercharge release voltage: 4.08 ± 0.05VOver discharge detection voltage: 2.55 ± 0.08VThe overdischarge release voltage: 2.9 ± 0.1VOvercurrent detection voltage: 150mVOvercurrent detection delay: 9MSOvercurrent protection current: 30 ± 3AOvercurrent protection release condition: Disconnect the loadShort circuit detection delay: 250uSShort circuit protection Release condition: disconnect negative openMain circuit conduction resistance: ≤20mΩWorking current: ≤30uASleep current (battery over discharge) ≤10uATemperature range: -30 / 80
