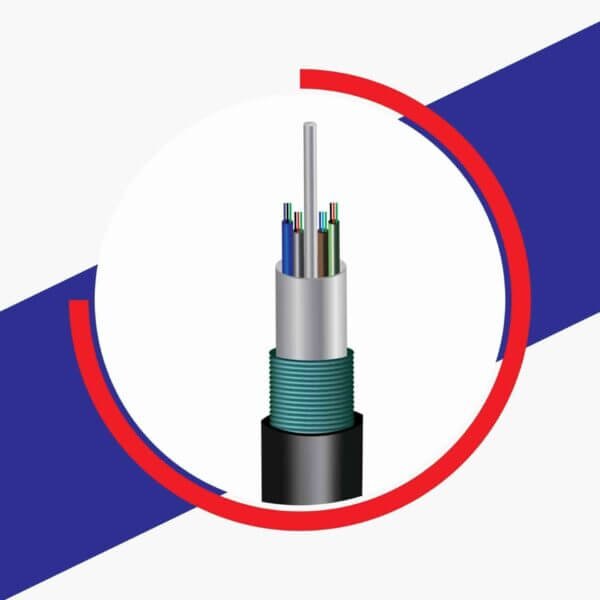

24 core Fiber Cable Om3 Multimode armored

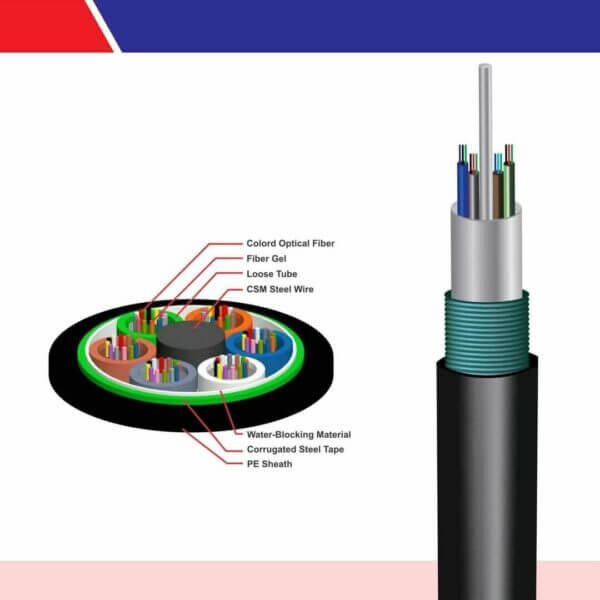

elv cable 24 core Fiber Cable Om3 Multimode armored ELV CABLE fiber optic pigtail is normally a  tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The Pigtail are available in both single and multimode versions with either APC or UPC polish types.24 core Fiber Cable Om3 Multimode armored Application Audio/Video Intercom System Public Address System Access Control System Burglar Alarm System Lighting Control System CCTV Systems Gate Automation Smart Home Automation Building Automation Computer Systems Electronics Circuits Measurement Devices SMATV CATV Systems Office Equipment’s And Other ELV Systems 24core Multi Mode Indoor-Outdoor Armoured Fiber Optic Cable Om3 PHYSICAL DESCRIPTION Products multi mode Fiber optic cable Tube Filling Compound Thixotropic jelly /N Fiber Type 50/125 OM2 Tube material PBT ( Polybutylene Terephthalate) Armour N Packing Detail Fiber Count 6,8,12,24, Tube Outer/Inner Diameter(mm) 3.0/2.0 ± Cable Diameter(mm) 4.2*-12 Cable Weight(kg/km) 45± Length/ Drum 2000 m Drum ±5% Ripcord Polyester cord Outer Jacket PE,MDPE, LSZH Physical tests Value Standard IEC 60794-1-E1 Impact Resistance 10J, 3 impacts IEC 60794-1-E4 Crush Resistance 220 N/cm IEC 60794-1-E3 Temperature Cycling -40 to 70 °C IEC 60794-1-F1 Flame Retardancy According to IEC 60332-3 IEC 60332-3 Cable Bending Radius Bend Radius (during installation) 20x cable diameter IEC 60794-1-2-E11A Bend Radius (during Service) 10x cable diameter IEC 60794-1-E11 Repeating Bending 20x cable diameter IEC 60794-1-E6 Temperature Range) Operation Temperature -40 to 70 C IEC 60794-1-2-F1 Storage and Transportation Temperature -40 to 70 C Installation Temperature -30 to 60 C 8core Multi Mode Indoor-Outdoor Fiber Optic Cable Om4 Optical Characteristics Fiber  type 50/125 μm MM OM2 50/125 μm MM OM3 50/125 μm MM OM4 Attenuation (max) 850 nm 3.5 dB/km 3.5 dB/km 3.5 dB/km 1300 nm  1.5 dB/km 1.5 dB/km 1.5 dB/km Bandwidth (Laser EMB) 850 nm 2000 MHz.km 2000 MHz.km 1300 nm 500 MHz.km 500 MHz.km Bandwidth (Overfilled) 850 nm 700 MHz.km 1500 MHz.km 3500 MHz.km 1300 nm 500 MHz.km 500 MHz.km 500 MHz.km Numerical Aperture 0.200±0.015 0.2±0.015 0.2±0.015 Core Diameter 50 ± 2 μm 50 ± 2 μm 50 ± 2 μm Cladding Diameter 125 ± 1μm 125 ± 1μm 125 ± 1μm Core/Clad Concentricity error ≤ 1 μm ≤ 1 μm ≤ 1 μm Cladding non-circularity ≤ 0.7 % ≤ 0.7 % ≤ 0.7 % Coating Diameter 242 ± 5 μm 242 ± 5 μm 242 ± 5 μm Proof Test ≥ 100kpsi or 0.7GPa ≥ 100kpsi or 0.7GPa ≥ 100kpsi or 0.7GPa Ordering Information Item Code Description ELV-3210 6CORE MULTI MODE  INDOOR/OUTDOOR FIBER OPTIC CABLE OM2
