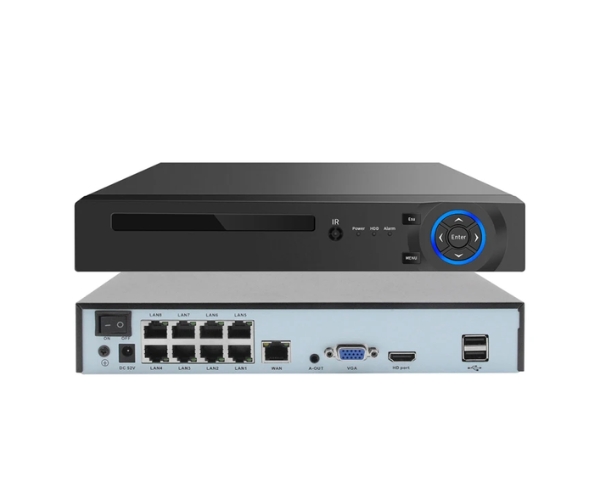

8CH POE NVR NST-NVR7508P-4K Support VGA, HDMI full HD output simultaneously; Support ONVIF; access third party; Support Web, CMS, center platform management software XMEYE, provide SDK development; Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Support various mobile monitoring (iPhone, Android); Remote Access, With DNS (ARSP),easy to monitor remotely. Model No. NST-NVR7508P-4K System Main processor Hi3536C Operating system Embedded Linux System resource Simultaneous multi-channel real-time recording, playback, network operation, USB backup Interface Operation interface 16-bit true color graphic menu operation interface, support mouse operation Preview 1/2/4/6/8/9/16 Video Video input (IP) 16ch 4K ( Access bandwidth 240Mbps , Need to dock with Gigabit POE module ) Video compression H.265AI/H.265 (Compatible with H.265/H.264) Display quality Max: 4K Playback quality 4K/5M/4M/3M/1080P VR Unsupport human shape / Face Support(depend on camera) Audio Audio compression G.711A intercom support Record and playback Record mode Manual>Alarm>Dynamic Detection>Timing Local payback(real-time Unreal-time) 4K ( 1 2 ) /5M ( 2 3 ) /4M ( 2 5 ) /3M ( 3 6 ) /1080P ( 5 9 ) Search mode Search by Time/Calendar/Event/Channel/Face Storage and back up Record Storage HDD 、 network Backup mode Network backup, USB hard disk, USB burner, SATA burner Interface Video output 1ch VGA , 1ch HDMI HD output Audio I/O 1/1 ( 3.5MM ) Alarm I/O 0/0 Network interface The expansion board provides a network connection USB interface 2*USB2.0 ports Hard disk 2* SATA(Up to 14TB for each disk Serial interface No Wireless interface 3G, WIFI (extension via USB) Other ONVIF Support Power supply Expansion board 12V power supply Power Consumption <10W(Without HDD) Work environment Temperature:0 ℃ – 55 ℃ , Humidity:10% – 90%RH , Atm:86kpa – 106kp Dimension L350*W275*H80MM Weight 1.6KG
