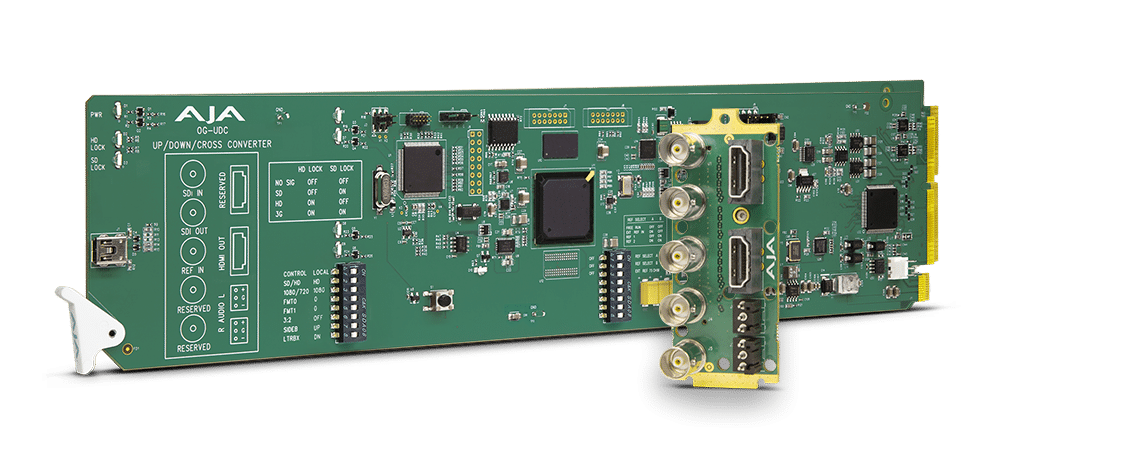

AJA OG-UDC OpenGear 3G-SDI up, down, cross-conversion, 2-Channel unbalanced audio output

Overview OG-UDC is an openGear 10-bit broadcast quality up, down, cross-converter that bridges HD and SD video resolutions. The OG-UDC provides 3G-SDI input and output, HDMI output and two 3-pin terminal block connectors for analog audio Outputs. Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network. Features openGear compatible card Converts between SD, HD, and 3G HD formats Supports 1080p50/60 Controlled by DashBoard network control software and external DIP switch 2x 3-Pin Terminal Block connectors (included) 16-channel embedded SDI audio input and output Reference Input Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames Five year warranty NOTE: OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported. OG-UDC passes-through embedded audio ancillary data only.  It does not pass through other types of embedded ancillary data. AJA Hardware Conversion Technology AJA’s powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include: SD/HD up/down-conversion SD/SD aspect ratio conversion HD/HD cross-conversion (720p/1080i) Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized) OG-UDC can up or down-convert between SD, HD, and 3G HD (1080p50/60), and cross-convert between HD formats including 3G HD.
